VIESSMANN VITOCAL 200-A PRO 32kW

Viessmann Vitocal 200-A PRO – Commercial Air-to-Water Heat Pump (32 kW, Monoblock)

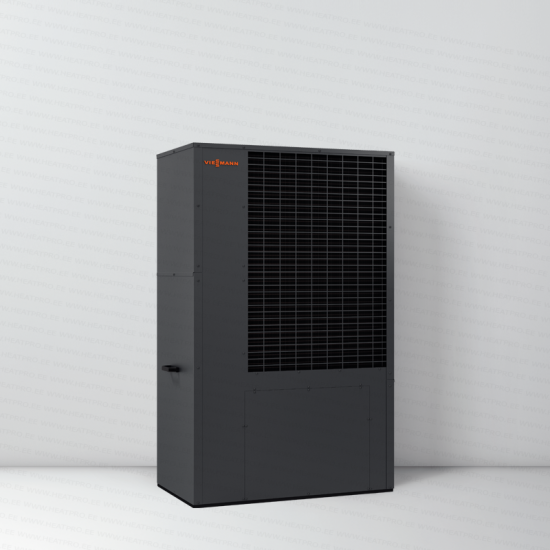

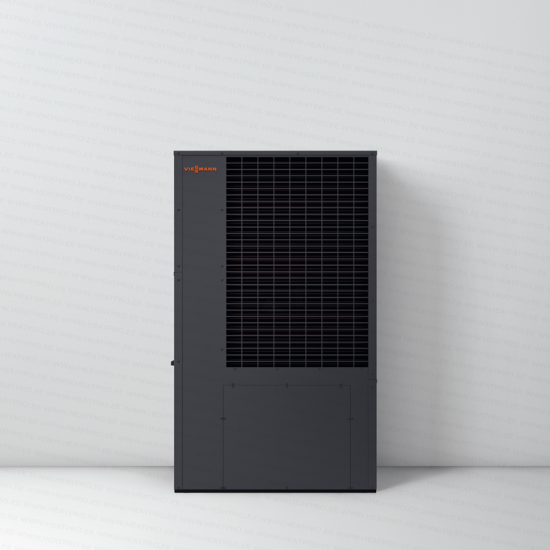

The Viessmann Vitocal 200-A PRO (32 kW) is a high-performance monoblock air-to-water heat pump engineered for commercial applications and larger residential buildings. It delivers efficient heating and cooling with robust performance, even in low outdoor temperatures down to -20 °C.

Using R407C refrigerant, the system supports flow temperatures up to 60 °C and is suitable for retrofit and new-build installations. The durable aluminium and powder-coated steel housing with sound insulation makes it ideal for sensitive urban or commercial environments.

Key Features and Benefits

✔ Nominal Heating Capacity: 32 kW (A7/W35)
✔ Operating Temperature Range: Down to –20 °C ambient
✔ Maximum Flow Temperature: Up to 60 °C
✔ Refrigerant: R407C
✔ Heating and Cooling: Ideal for multi-family buildings, hotels, offices
✔ Hydraulic Module Integration: For direct system connection
✔ Modular System Design: Can be cascaded up to 8 units (up to 256 kW)
✔ Casing: Corrosion-resistant aluminium/stainless steel, powder-coated
✔ Advanced Control: Vitotronic 200 with touch display and Modbus/BACnet interface
✔ Low Noise: Optimized acoustic design for noise-sensitive areas

Vitocal 200-A PRO (32 kW) offers reliable, scalable, and efficient heating and cooling, purpose-built for professional and commercial use.
